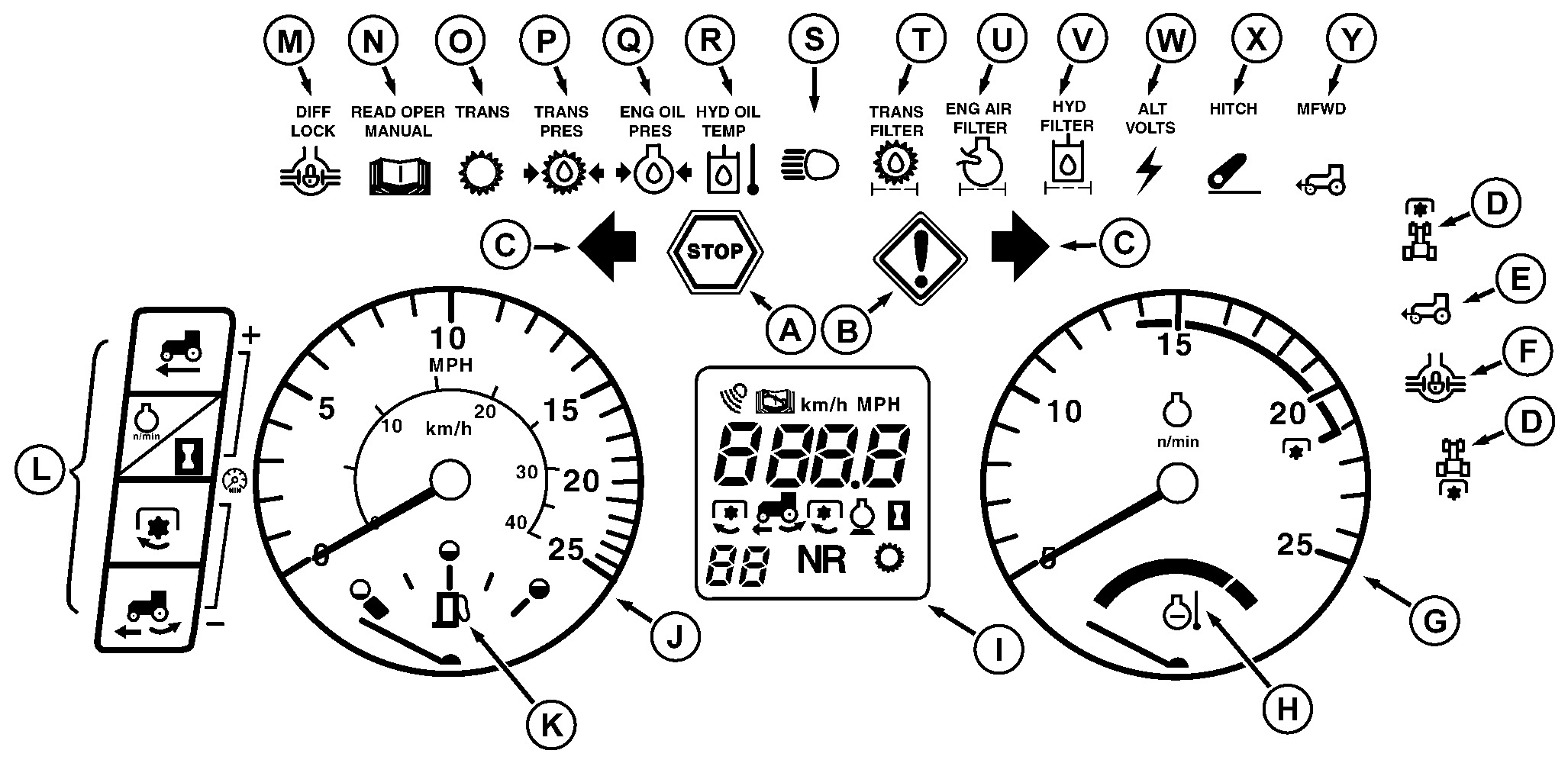

| KEY |
ITEM |
FUNCTION |
| |
| A |
STOP |
Serious Malfunction-STOP ENGINE IMMEDIATELY |
| B |
SERVICE ALERT |
Flashes when a problem develops-Observe guages and indicator lamps |
| C |
Turn Signal |
Flashes left or right turn lights-Both flash when activating HAZARD switch |
| D |
PTO Function |
Indicates activated PTO-Indicator flashes if problem exists |
| E |
MFWD Function (Cab) |
Indicates MFWD or HMS is engaged-Indicator flashes if problem exists |
| F |
Differential Lock Function (Cab) |
Indicates differential lock or HMS is engaged-Indicator flashes if a problem exists |
| G |
Tachometer |
Indicates engine speed |
| H |
Engine Temperature |
Indicates temperature of engine |
| I |
Digital Display |
Displays tractor true ground speed (mph), hourmeter, PTO speed, engine speed, current system voltage, and wheel slip-Displays gear selected and direction for Powershift transmission |
| J |
Speedometer |
Indicates tractor ground speed (mph) |
| K |
Fuel |
Indicates remaining amount of fuel |
| L |
Function Selectors |
Changes digital display functions |
| M |
Differential Lock Function (Open Station) |
Differential lock is activated -Indicator flashes if problem exists |
| N |
Read Operator Manual |
F1 fuse is blow-Flashes to indicate a problem not included by other indicators |
| O |
Transmission System * |
PowerQuad-No function
Powershift-Indicates a problem with transmission control system or indicates tractor is in "enable" mode |
| P |
Transmission Oil Pressure ** |
Low transmission oil pressure |
| Q |
Engine Oil Pressure ** |
Low engine oil pressure |
| R |
Hydraulic Oil Temperature *** |
Hot hydraulic oil |
| S |
High Beam Head Lights |
High beam head lights are activated |
| T |
Transmission Filter Restriction * |
Restricted transmission filter |
| U |
Engine Air Filter Restriction |
Restricted engine air filter |
| V |
Hydraulic Filter Restriction |
Restricted hydraulic filter |
| W |
Voltage |
Electrical system voltage is too low or too high |
| X |
Hitch System |
Flashes when tractor is in "enable" mode (Powershift transmission) |
| Y |
MFWD Function (Open Station) |
MFWD is engaged-Indicator flashes if problem exists |
