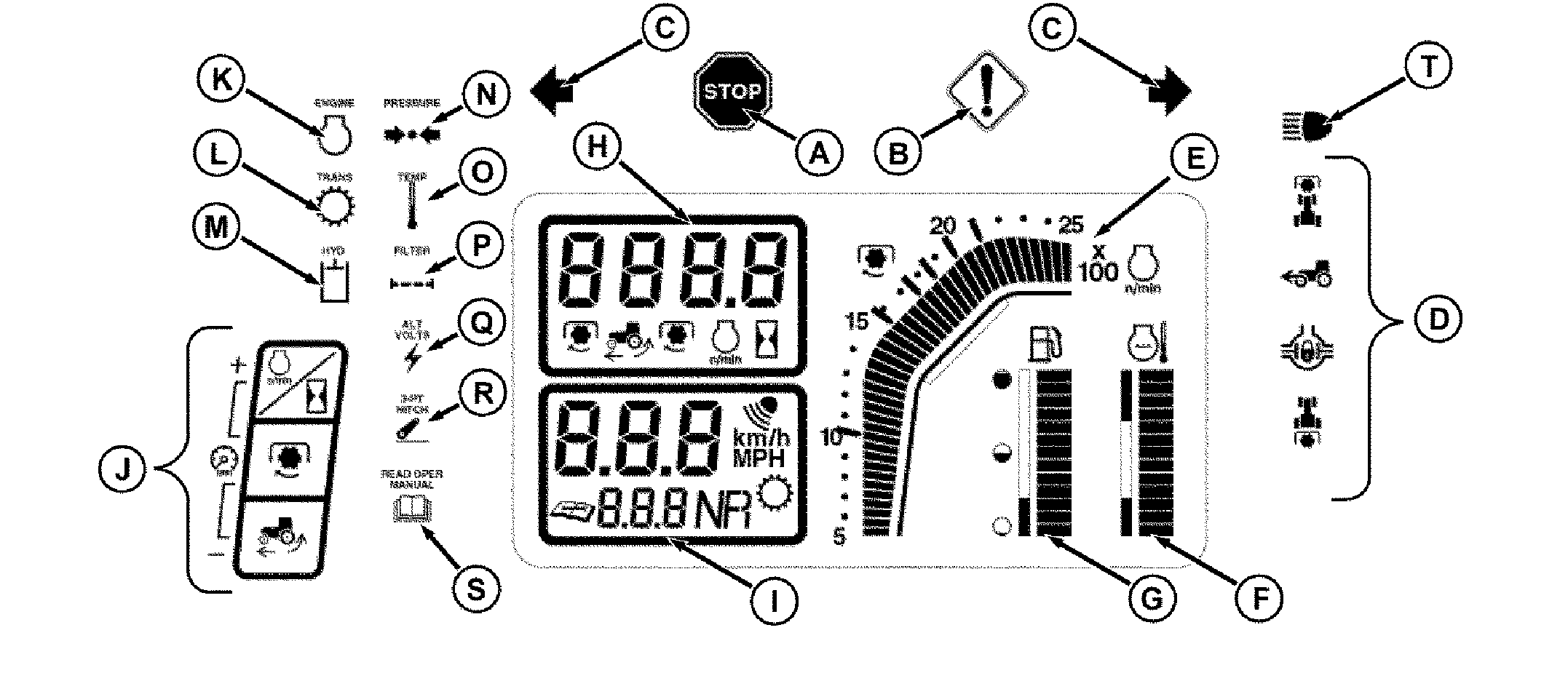

| KEY |
ITEM |
FUNCTION |
| |
| A |
STOP |
Serious Malfunction-STOP ENGINE IMMEDIATELY |
| B |
SERVICE ALERT |
Flashes when a problem develops-Observe guages and indicator lamps |
| C |
Turn Signals |
Flashes left or tight turn lights-Both flash when activating HAZARD switch |
| D |
Function |
Indicates the activated function- MFWD, Differential Lock, PTO, and HMS-Indicator flashes if a problem exists |
| E |
Tachometer |
Indicates engine speed |
| F |
Engine Temperature |
Indicates temperature of engine |
| G |
Fuel |
Indicates remaining amount of fuel |
| H |
Upper Digital Display |
Displays tractor hourmeter, PTO speed, engine speed, current system voltage, and wheel slip |
| I |
Lower Digital Display |
Displays tractor ground speed (mph)-Displays gear selected and direction for tractors with AutoQuad II or Powershift transmission |
| J |
Function Selectors |
Changes digital display functions-(See Changing Display Function) |
| K |
Engine System |
Flashes with "PRESSURE" symbol (low oil pressure) ** or "FILTER" symbol (air filter restricted) * |
| L |
Transmission System |
Flashes with "PRESSURE" symbol (low transmission oil pressure) ** or "FILTER" symbol (transmission filter restriction) * -Flashes to indicate problem with Powershift transmission control system |
| M |
Hydraulic System |
Flashes with "TEMPERATURE" symbol (hot hydraulic oil) ** or "FILTER" symbol (hydraulic filter restriction) * |
| N |
Pressure ** |
Flashes with "ENGINE" symbol or "TRANSMISSION" symbol to indicate low oil pressure |
| O |
Temperature *** |
Flashes with "HYDRAULIC" symbol to indicate hot hydraulic oil |
| P |
Filter * |
Flashes with "ENGINE" symbol or "TRANSMISSION" symbol to indicate filter restriction |
| Q |
Voltage * |
Electrical system voltage is too low or too high |
| R |
Hitch |
Flashes when the tractor is in the "enable" mode (Powershift transmission) |
| S |
Read Operators Manual |
Flashes to indicate a problem not included by other indicators |
| T |
High Beam Head Lights |
Indicates high beam head lights are activated |
