CAUTION:
Avoid injury caused by accidental collision with another vehicle. Comply with traffic regulations when driving tractor on a road. Avoid using flood lights which could blind or confuse other drivers.
Light switch (A) has three positions and operates regardless of the key position.
OFF POSITION
Turns off all lights
HAZARD POSITION
Hazard Lights
ROAD POSITION 1
Hazard Lights
Tail Lights
Head Lights
FIELD POSITION 2
Head Lights
Flood Lights
Front Wrap-Around Lights

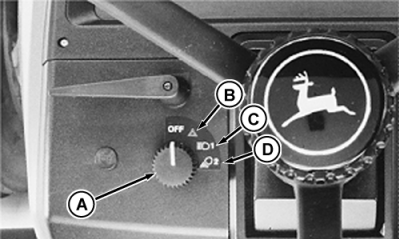

A-Light Switch
B-Hazard Light Position
C-Road Position
D-Field Position

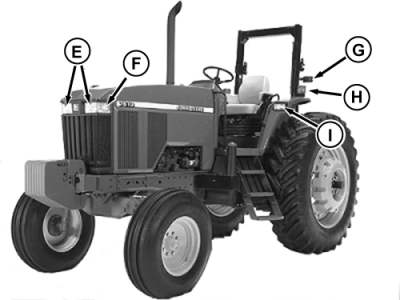

E-Head Lights
F-Front Wrap-Around Light
G-Rear Flood Light
H-Hazard Lights/Tail Lights
I-Front Floods
CAUTION:
Avoid injury caused by accidental collision with another vehicle. Comply with traffic regulations when driving tractor on a road. Avoid using flood lights which could blind or confuse other drivers.
