Operating Lights-Cab Tractors
 CAUTION:
Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim head lights to low-beam for oncoming vehicles. Avoid using flood lights which could blind or confuse other drivers.

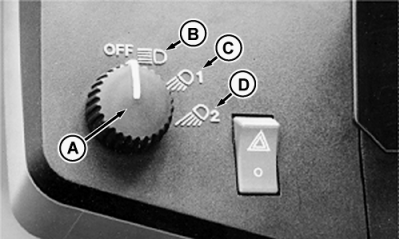

The light switch (A) has three positions and operates regardless of the key position.
OFF POSITION
Switches off all lights
ROAD POSITION
-
(B)
-
Low/High Beam Head Lights
-
Low/High Beam Loader Lights
-
Amber Warning Lights
-
Tail Lights
-
Extremity Transport Warning Lights
FIELD POSITION 1
-
(C)
-
Low/High Beam Head Lights
-
Low/High Beam Loader Lights
-
Rear Roof Flood Lights (High Beam Position)
-
Rear Fender Flood Lights
-
Front Belt-Line Flood Lights (High Beam Position)
-
Front Wrap-Around Lights
FIELD POSITION 2
-
(D)
-
Low/High Beam Head Lights
-
Front Roof Flood Lights
-
Rear Roof Flood Lights (High Beam Position)
-
Rear Fender Flood Lights
-
Front Belt-Line Flood Lights (High Beam Position)
-
Front Wrap-Around Lights
|
A-Light Switch
B-Road Position
C-Field Position 1
D-Field Position 2

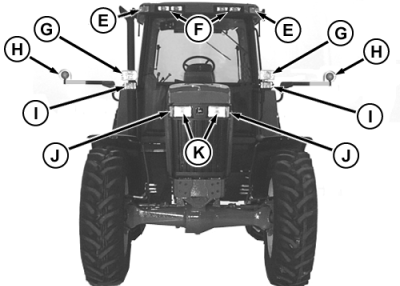

E-Amber Warning Lights
F-Roof Flood Lights
G-High/Low Beam Loader Lights (Optional)
H-Extremity Transport Warning Lights
I-Front Belt-Line Flood Lights
J-Front Wrap-Around Lights
K-Head Lights
L-Rear Flood Lights
M-Red Tail Lights
|
