Using Extremity Transport Warning Lights

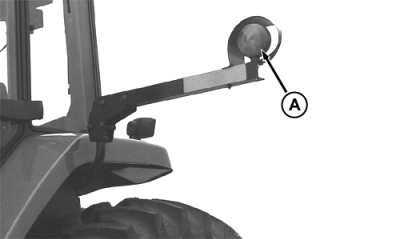

CAUTION: Extremity transport warning lights (A) are needed when tractor width exceeds 3.7 m (12 ft). Always use road lights and transport warning lights when operating tractor on a road or highway at night OR during the day. Extremity warning lights alert other vehicles of your extended tractor width. Hazard switch used alone is for a disabled vehicle condition.

IMPORTANT: Extremity warning lights must be adjusted so each light is no more than 400 mm (16 in.) from widest point of tractor.

To avoid damage, extremity warning lights may be retracted for single tire operation, for operation in brushy conditions, or when parking vehicle in storage building.

AG,RF30435,2311 -19-21DEC99-1/1
