Adjusting Mechanical Suspension Seat

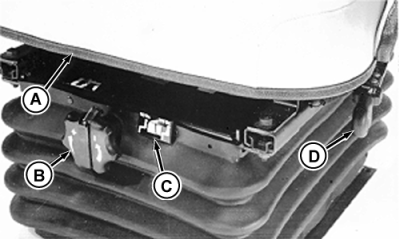

Lift seat pan (A) to desired height. To reset the seat stop, lift seat to the highest position and lower seat.

Turn knob (B) to adjust seat for desired comfort. Indicator (C) shows weight adjustment.

Move lever (D) to adjust seat cushion forward or rearward. Lever will lock seat at desired position.
