Using Instructional Seat-Optional

CAUTION: This instructional seat has been provided only for training operators or diagnosing machine problems. Keep all other riders off the tractor and equipment. Always wear your seat belt.

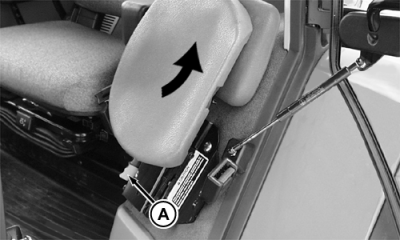

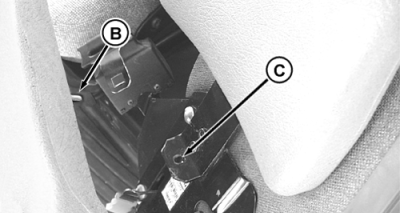

Pull lever (A) to release seat cushion. Turn seat cushion counter-clockwise aligning post (B) with hole (C).

Pull up on cushion, turn clockwise, and lock into upright position when not in use.

AG,RF30435,2317 -19-21DEC99-1/1
