OMAR172268: 7610, 7710, and 7810 Tractors( 30 001- ), Block File: AG_RF30435_2322_19

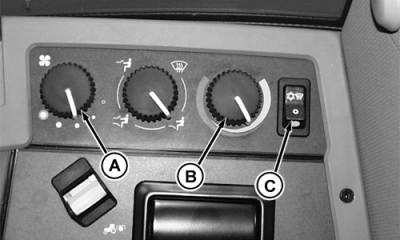

Fan speed control (A) and air conditioning switch (C) must be in the ON position before the air conditioning system will operate.

Knob (B) controls the heater and defroster temperature.

Put switch (C) in the ON position to defog the windows, and adjust control (B) to desired temperature.

AG,RF30435,2322 -19-16FEB00-1/1
