Operating Windshield Wiper

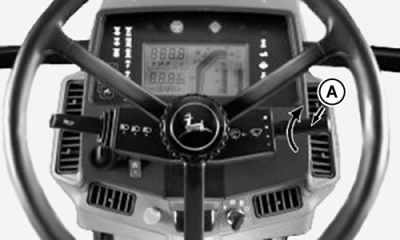

Rotate switch (A) to activate four wiper positions:

• Off
• Intermittent
• Slow
• Fast

Push end of switch toward the steering column to operate optional windshield washer.

Fill washer reservoir (B) at left-rear of tractor cab. Use non-freezing solvent to prevent damage to washer system in cold temperatures.

Push switch (C) to operate optional rear washer and wiper.

AG,RF30435,2323 -19-21DEC99-1/1
