Using Auxiliary Heaters

causym CAUTION: To avoid electrical shock or fire, use a three-wire, 14 AWG (14 gauge), heavy-duty electrical cord with 15-amp rating, suitable for outdoor use. Always plug electrical cord into a 120-volt outlet protected by GFI (ground fault interrupter).

Auxiliary heaters are available from your John Deere Dealer:

  • Engine Coolant (1000 W)- standard
  • Transmission (200 W) and Hydraulic Charge Pump (200W)- optional 1

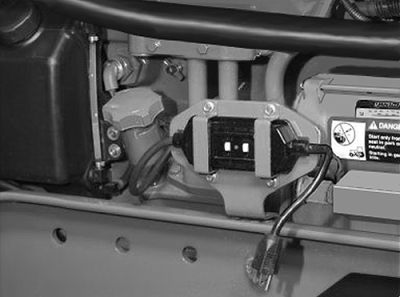

Connect the heaters and the ground fault interrupter to a ground fault protected 120-volt electrical outlet.

IMPORTANT: The ground fault interrupter on the tractor protects the tractor only and does not protect electrical wiring supplying power to the tractor. Test all ground fault interrupters before each use.

RW56293

1 Includes a ground fault interrupter

AG,RF30435,2344 -19-21DEC99-1/1
