Powershift Transmission Enabling Mode

The enabling mode provides limited transmission function in case of malfunction.

Remove console ring and side panel to access wiring.

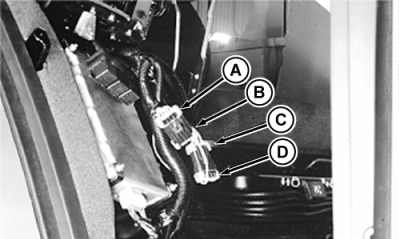

Disconnect wiring harness (A) and (B) from Powershift Control Unit. Disconnect enabling wiring harness (C) and (D).

Plug wiring harness (A) into (C). This enables the use of two gears (ninth gear forward and fourth gear reverse). Engaging the clutch is necessary for operation.

AG,RF30435,2354 -19-21DEC99-1/1
