Operating Left-Hand Reverser-Optional

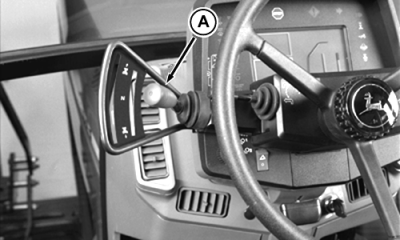

The left-hand Forward/Reverse shuttle lever (A) provides fully modulated shuttle shift capability between forward and reverse.

Neutral position is detented so lever cannot be inadvertently bumped into gear. Pull shuttle lever toward operator, then upward to move forward. Move lever downward for reverse. Forward/Reverse shuttle lever automatically returns to NEUTRAL position when the range-shift lever is placed in PARK position.

NOTE: To start tractor, the reverser lever must be in the NEUTRAL position with range-shift lever in NEUTRAL or PARK.

Cold oil may delay engagement of Forward/reverse lever. Operator may have to engage forward/reverse lever several times before tractor will move.

The enabling mode provides limited transmission function, in case of malfunction. If reverser lever will not stay in forward or reverse, hold reverser lever in the desired direction. If tractor moves, hold lever long enough to get tractor to service facility. If tractor will not move, see your John Deere Dealer.
