Transmission-Hydraulic System Warm-Up

Avoid operating the tractor under load until transmission-hydraulic system has warmed up.

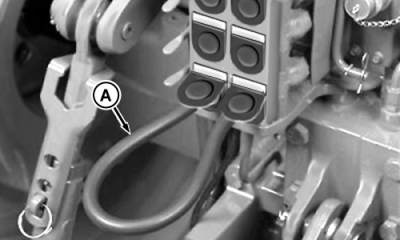

To speed the cold weather warming process, install jumper hose (A) into the number one SCV coupler.

Shift transmission to PARK position and operate engine at 1600-1800 rpm.

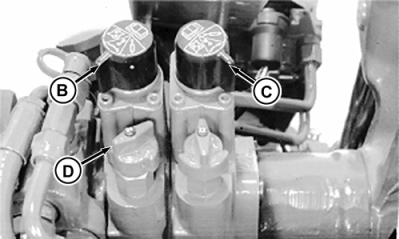

Turn the number one SCV selector knob to cylinder (automatic) detent position (B). Turn the number two SCV selector knob to motor (continuous) detent position (C).

Pull levers on the shift console rearward.

Turn the number one SCV metering valve (D) to full flow "rabbit" position. Adjust valve toward "turtle" position, to restrict flow until engine is loaded.

Move SCV levers to neutral position, after the transmission-hydraulic system has warmed up.
