Using Field Cruise-AutoQuad II Transmission

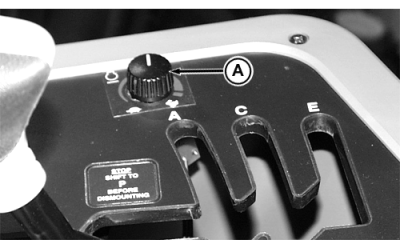

Push engine throttle all the way forward and turn knob (A) to set engine speed as follows:
OFF (turn knob fully clockwise)
-
Use for heavy tillage field work, such as moldboard plowing, chisel plowing, or ripping
ON (turn knob counterclockwise out of detent)
-
Use when constant speed is required for a particular light load application, such as planting, fertilizing, or applying herbicide
-
Engine speed can be adjusted from 1500-2200 rpm by rotating knob
-
Engine speed remains constant at set speed
|
|
