Adjusting Height Limit

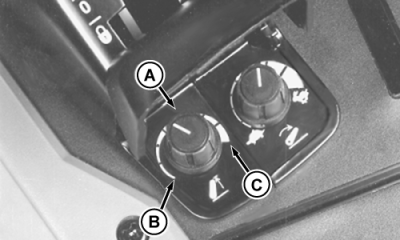

Hitch height limit is controlled by turning control knob (A). Turning knob fully counter clockwise (B), height is limited to 25 percent to the maximum height. Turning knob fully clockwise (C), hitch can be raised to maximum height.

NOTE: External raise/lower switch can raise hitch above selected limit.

AG,RF30435,2369 -19-21DEC99-1/1
