Using Hitch Manual Lowering Feature

Hitch manual lowering is possible when hydraulic pressure and/or electrical power is not available.

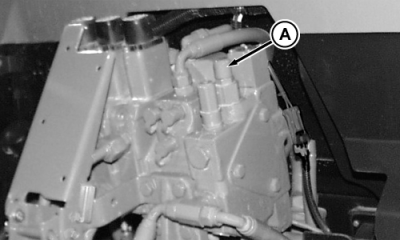

Remove knurled cap (A) at top of hitch valve. Use a small punch to push in manual lowering plunger. Rate of drop is controlled by amount of force applied to plunger.

Hitch Relief Valve
