Adjusting Implement Level

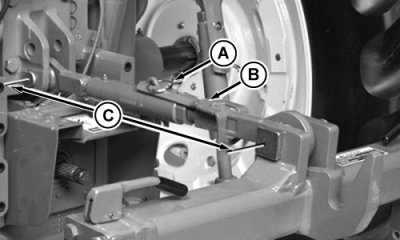

Adjust center link to level implement front-to-rear. Remove lock pin (A) and lift adjusting handle wrench (B). Rotate center portion of center link to desired position.

Secure adjusting handle wrench with lock pin.

Measure between centers of pins (C).

NOTE: Normal adjustable range is 609-769 mm (24-30 in.).
