Adjusting Rate of Cylinder or Motor Operation

CAUTION: Excessive operating speed may cause injury or machine damage.

NOTE: If metering valve knob is difficult to turn, check for dirt build-up below the knob.

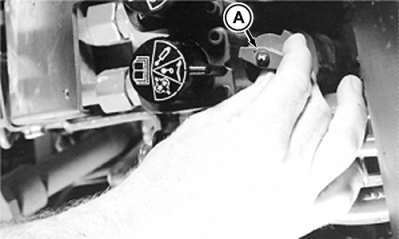

Adjust rate of operation by turning the metering valve knob (A). Turning metering valve knob counter clockwise increases the rate, and clockwise decreases the rate.

NOTE: Reducing oil flow rate may be required with some implements if detent kicks out before end of cycle.
