Using SCV Features

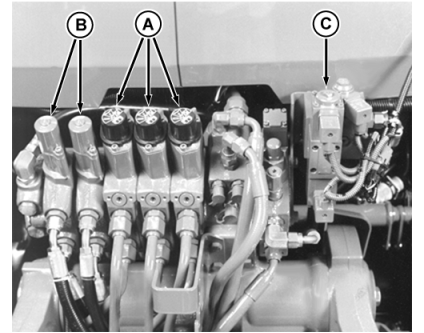

RW56565A


A-Three-Position SCV

B-Loader Boom and Loader Bucket Valves

C-Electro-hydraulic (EH) Valve


Three-Position SCV (A)

NOTE: See SCV Lever Detent Operation in this section.

  • Adjustable flow control-fine tunes flow
  • Pressure compensation-needed for controlling hydraulic motors
  • Selectable three-position detent:

    a. Automatic Detent-returns lever to neutral position at end of cylinder stroke
    b. No Detent-returns lever to neutral position when released by operator
    c. Continuous Detent-lever can be manually returned to neutral position

  • Both work ports have load-holding ability
  • Detented float position
Loader Boom and Bucket Valves (B)
  • No flow adjustability
  • No pressure compensation
  • One work port with load-holding ability

NOTE: Loader valves (B) are used with two and three function loaders.

Electro-Hydraulic (EH) Valve (C)
  • No flow adjustability
  • No pressure compensation
  • Electric solenoid activated-valve is "ON" or valve is "OFF"

NOTE: Electro-hydraulic valve is used for controlling third functions such as a grapple fork.

AG,RF30435,2390 -19-16FEB00-1/1
