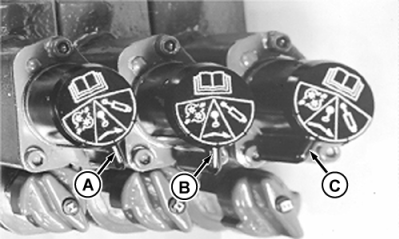

SCV Lever Detent Operation
Knob Position
Function of Lever Detent
Turn Counter Clockwise (A) to Detent Stop
Continuous Detent-lever must be manually returned to neutral
Center (B)
No Detent-lever returns to neutral when released
Turn Clockwise (C) to Detent Stop
Automatic Detent-lever returns automatically when cylinder reaches end of stroke
