Adjusting Detent Relief Setting

NOTE: Detent relief setting on all SCVs is factory adjusted to 17 500-18 500 kPa (180 bar) 2700 psi pressure. With some implements, increasing the relief setting above the factory setting may result in the detent not releasing.

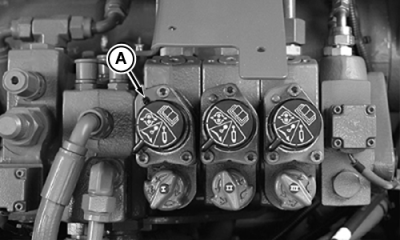

Remove plug (A) and insert a standard screwdriver to adjust setting. Turn screw clockwise to increase pressure and counter clockwise to decrease pressure. One full turn will change pressure setting 5500 kPa (55 bar) 825 psi.

Suggested field adjustment procedure:

1. Disconnect hoses from SCV.

2. Turn detent selector knob clockwise to the Automatic Detent Position .

3. Adjust screw until lever will hold.

4. Slowly loosen screw until the lever releases, then loosen 3/8 addition turn.

RW55810A

AG,RF30435,2398 -19-21DEC99-1/1
