Using Power Beyond Valve and Couplers

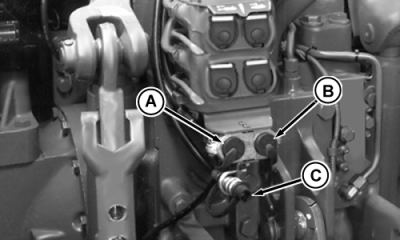

Remove caps from power-beyond valve couplers. Connect hoses from hydraulic motor or other equipment requiring an independent control valve, making sure hose ends and couplers are clean.

A-Pressure Port
B-Return Port
C-Load-Sense Port

AG,RF30435,2401 -19-21DEC99-1/1
