Using Rear Cast Iron Weights

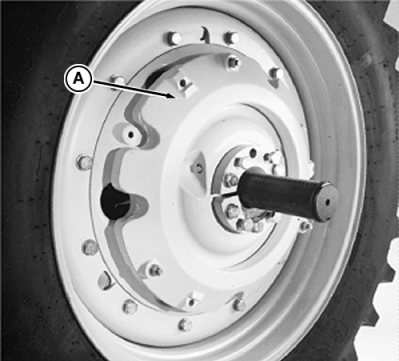

Cast iron weights (A) are available of 75 kg (165 lb) or 210 kg (465 lb) can be installed on inside or outside of wheel. Wheel weights should not be installed on outside of inner wheel when the tractor is equipped with duals, since the combination prevents retightening of the sleeve bolts. Adjusting ballast is easier if some of the ballast is attached to the outside of the outer (dual) wheel. See your John Deere Dealer for weight use and placement. |
|
CAUTION:
When installing weights, use appropriate equipment or have the job done by your John Deere Dealer.
AG,RF30435,2424 -19-21DEC99-1/2 |
|
NOTE: When using 762 mm (30 in.) tread setting, only one 210 kg (465 lb) weight can be installed on inside of wheel. Install weights on wheel. For additional weights, install bolts in previous weight. Rotate alternate weight to align bolts with weight holes. Tighten bolts. (See Torque Charts in the Specifications Section). Retighten after driving approximately 100 m (100 yds), after 3 hours, and again after 10 hours of operation. Check tightness every 250 hours. IMPORTANT: Inside wheel weights must have at least 25 mm (1 in.) clearance between weight and tractor components. |
|
AG,RF30435,2424 -19-21DEC99-2/2 |
