Installing QUIK-TATCH Weights

Up to 20 (18 for tractors with MFWD) QUIK-TATCH weights can be installed on tractors.

When required, install QUIK-TATCH weights, balanced on each side of center (A). The first two weights must be installed as a pair.

To hold six weights or fewer in position, insert retaining bolts (B) through holes and secure with a nut. Tighten to 230 N·m (170 lb-ft).

AG,RF30435,2429 -19-21DEC99-1/2

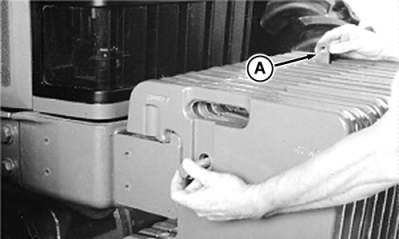

When eight more weights are installed, insert retainers (A) between weights, one with threaded hole upward and the other with threaded hole downward. Tighten bolts to 230 N·m (170 lb-ft).

AG,RF30435,2429 -19-21DEC99-2/2
