Tightening Front Wheel and Axle Bolts- Two-Wheel Drive

causym CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel bolts. Wheel bolts are critical and require retightening.

Tighten bolts:

Specification

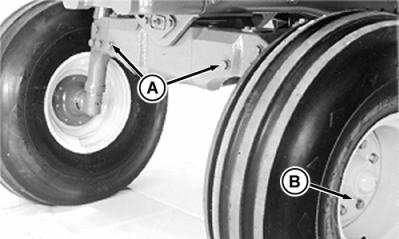

Regular or Wide Axle (A) -Torque 600 N·m (445 lb-ft)
Two-Wheel Drive Wheel (B) -Torque 310 N·m (230 lb-ft)

Drive tractor 100 m and retighten bolts.

Retighten bolts after working 3 HOURS and again after 10 HOURS .
