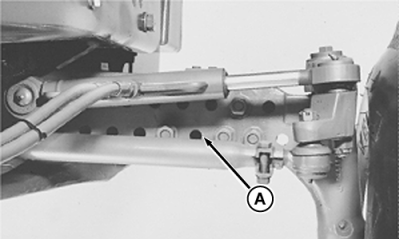

Front Axle Tread Settings-Standard SettingsFront axles (A) have seven standard tread settings. |
|
| Tire Size |
Valve Stem Location |
Axle Position | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| 11.00-16 | Out | 1525 mm (60 in.) |
1625 mm (64 in.) |
1725 mm (68 in.) |
1830 mm (72 in.) |
1930 mm (76 in.) |
2030 mm (80 in.) |
2135 mm (84 in.) |
| In | 1625 mm (64 in.) |
1725 mm (68 in.) |
1830 mm (72 in.) |
1930 mm (76 in.) |
2030 mm (80 in.) |
2135 mm (84 in.) |
2235 mm (88 in.) |
|
| 11.00-20 | Out | 1525 mm (60 in.) |
1625 mm (64 in.) |
1725 mm (68 in.) |
1830 mm (72 in.) |
1930 mm (76 in.) |
2030 mm (80 in.) |
2135 mm 84 in.) |
| In | 1625 mm (64 in.) |
1725 mm (68 in.) |
1830 mm (72 in.) |
1930 mm (76 in.) |
2030 mm (80 in.) |
2135 mm (84 in.) |
2235 mm (88 in.) |
|
| 14L-16.1 | Out | 1575 mm (62 in.) |
1675 mm (66 in.) |
1780 mm (70 in.) |
1880 mm (74 in.) |
1980 mm (78 in.) |
2085 mm (82 in.) |
2185 mm (86 in.) |
AG,RF30435,2441 -19-21DEC99-1/1 |
