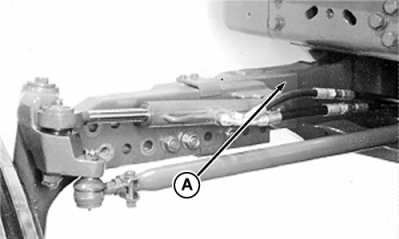

Front Axle Tread Settings-With ExtensionsFront axles (A) have seven tread settings with extensions. |
|
| Tire Size |
Valve Stem Location |
Axle Position | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| 11.00-16 | Out | 1970 mm (77.5 in.) |
2070 mm (81.5 in.) |
2170 mm (85.5 in.) |
2275 mm (89.5 in.) |
2375 mm (93.5 in.) |
2475 mm (97.5 in.) |
2580 mm (101.5 in.) |
| 11.00-20 | Out | 1970 mm (77.5 in.) |
2070 mm (81.5 in.) |
2170 mm (85.5 in.) |
2275 mm (89.5 in.) |
2375 mm (93.5 in.) |
2475 mm (97.5 in.) |
2580 mm (101.5 in.) |
| 14L-16.1 | Out | 2020 mm (79.5 in.) |
2120 mm (83.5 in.) |
2220 mm (87.5 in.) |
2325 mm (91.5 in.) |
2425 mm (95.5 in.) |
2525 mm (99.5 in.) |
2630 mm (103.5 in.) |
AG,RF30435,2442 -19-21DEC99-1/1 |
