Adjusting Front Axle

IMPORTANT: Do not place jack under engine oil pan.

1. Jack up front end of tractor.

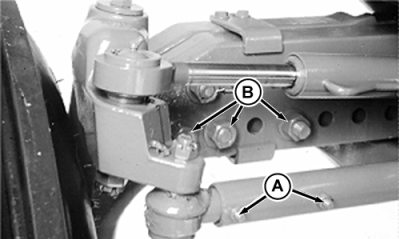

2. Remove bolts (A) from tie rod and bolts (B) from axle.

3. Slide axle knee to desired position and tighten bolts (B) to 600 N·m (445 lb-ft).

4. Install bolts in tie rod (A) making sure tie rod is changed same amount as axle.

5. Adjust other side using the same procedure. Both sides should normally have the same spacing.

6. Check toe-in and adjust as required.
