Adjusting Toe-In-MFWD Axle

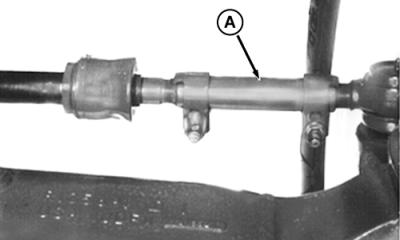

1. Loosen nuts on both ends of the right and left tie rod tubes (A).

2. Rotate tubes to lengthen or shorten tie rods, as needed to obtain toe-in or toe-out of less than 3 mm (1/8 in.). Each 1/8 turn equals approximately 4 mm (3/16 in.) change.

3. Tighten nuts on both ends of right and left tie rod tubes (A) to 75 N·m (55 lb-ft).

NOTE: Bolt threads should point to front of tractor.
