Adjusting Fenders-Tread Settings

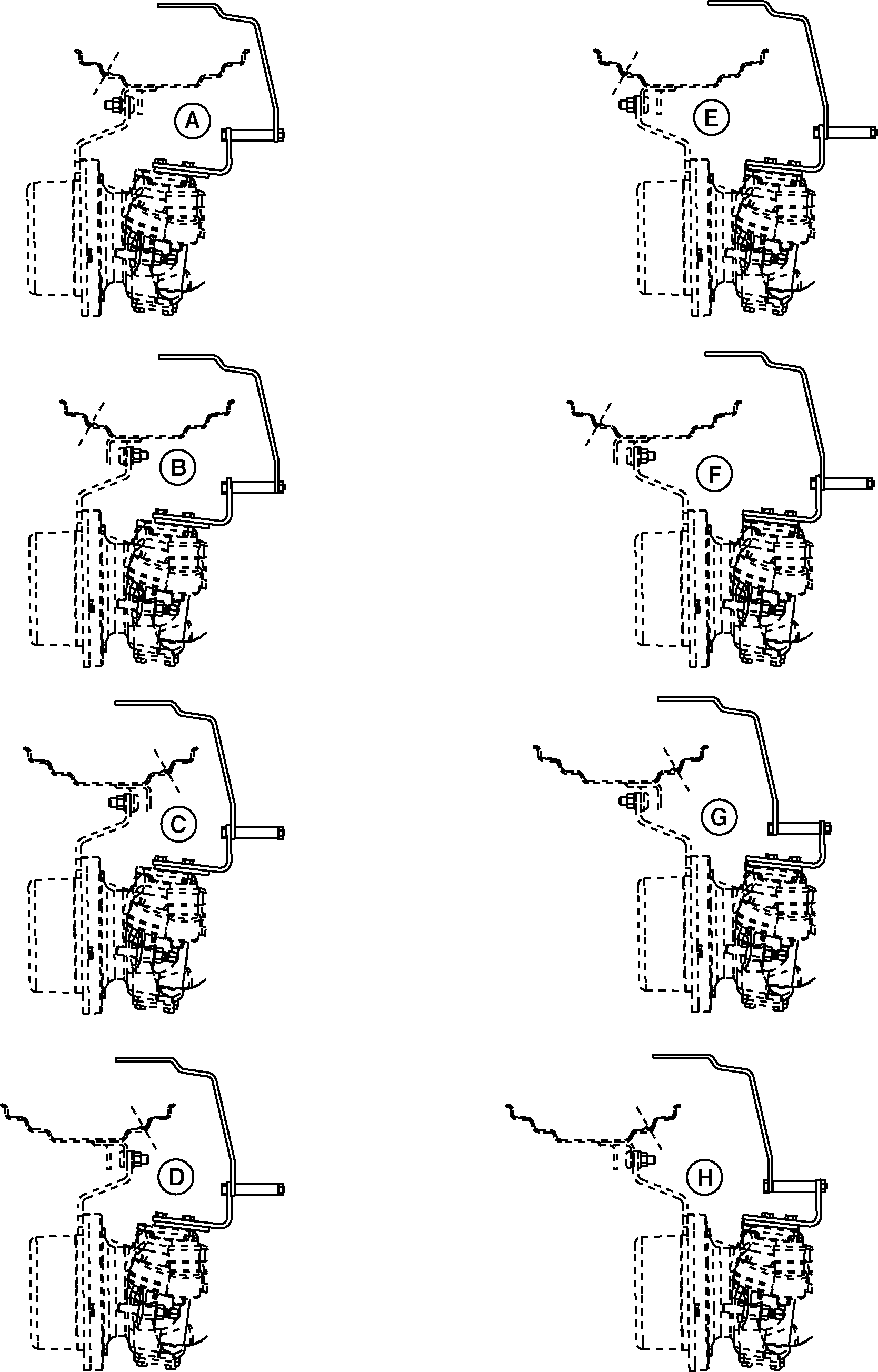

Use diagram as a guide to adjust fender to desired tread setting.
| |
Valve Stem Out |
Valve Stem In |
| |
| A- |
1524 mm (60 in.) |
- |
| B- |
1626 mm (64 in.) |
- |
| |
|
|
| C- |
- |
1727 mm (68 in.) |
| D- |
- |
1829 mm (72 in.) |
| |
|
|
| E- |
1930 mm (76 in.) |
- |
| F- |
2032 mm (80 in.) |
- |
| |
|
|
| G- |
- |
2134 mm (84 in.) |
| H- |
- |
2235 mm (88 in.) |
|
|
|
|
