Removing Side Shields

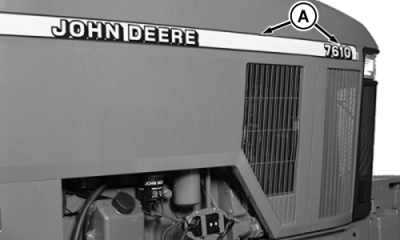

Press down on top edge of side shields (A).

Pull outward on side shield and lift off.

Replace shields by aligning holes on bottom edge with pins on frame. Push down on shield and push in at top of shield.

AG,RF30435,2489 -19-21DEC99-1/1
