Removing Hood

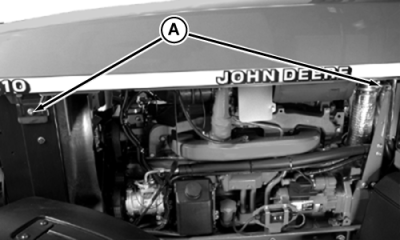

Remove only the four cap screws (A) retaining hood to side rails.

NOTE: Other cap screws are for hood adjustment. Hood adjustment is set at the factory. Adjustment is not required if adjusting cap screws are not removed.

Lift front of hood up and secure in raised position with a support, or lift off hood.

RW55824A

AG,RF30435,2490 -19-21DEC99-1/1
