Accessing Batteries

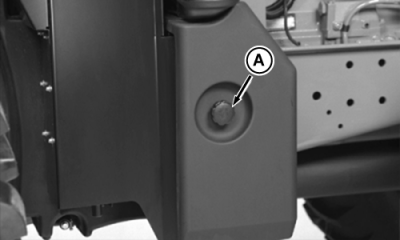

Batteries for tractors with cab are located on right side below exhaust. To gain access, loosen knob (A) and slide off cover.

AG,RF30435,2491 -19-21DEC99-1/2

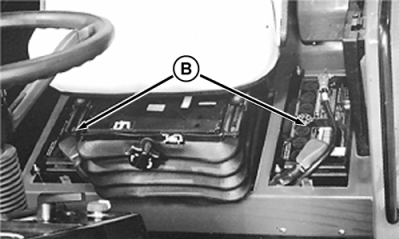

Batteries (B) for open-station tractors are located on either side of the seat. Remove covers to gain access.

(See Service Batteries in the Maintenance-Electrical System Section)

AG,RF30435,2491 -19-21DEC99-2/2
