Checking Neutral Start System-PowrQuad Transmission with Right-Hand Reverser

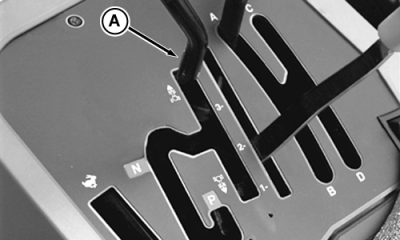

Fully depress clutch and brake pedals. Move reverser lever (A) from PARK position to a forward gear. Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately. Repeat this step with transmission in a reverse gear.

AG,RF30435,2499 -19-21DEC99-1/1
