Cleaning or Replacing Cab Air Filters

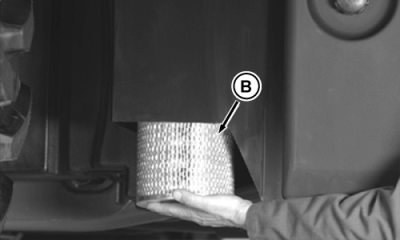

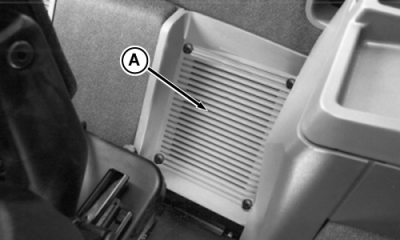

Remove air recirculation filter housing covers (A) behind the seat. Remove filters and blow clean with compressed air. This service may be required more often in dusty conditions. Remove and clean fresh air filter (B) with compressed air. Inspect filter for damage after cleaning. Damaged filters should be replaced immediately. Make sure gasket is in good condition. |
|
CAUTION:
The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.
AG,RF30435,2504 -19-21DEC99-1/1 |
