Replacing Fan Belt

NOTE: Fan drive belt is equipped with an automatic tensioner which does not require adjustment.

1. Rotate tension arm by placing 1/2 in. breaker bar in arm (A).

2. Remove belt from fan drive pulley.

3. Relax tension and remove belt from crankshaft pulley and fan.

4. Replace belt.

RW55845A
RW55864

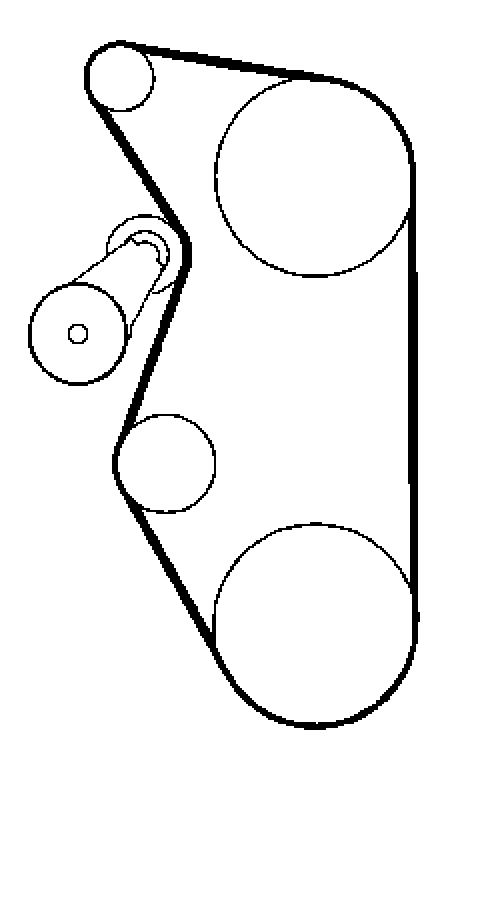

7610 Open Station

RW55865

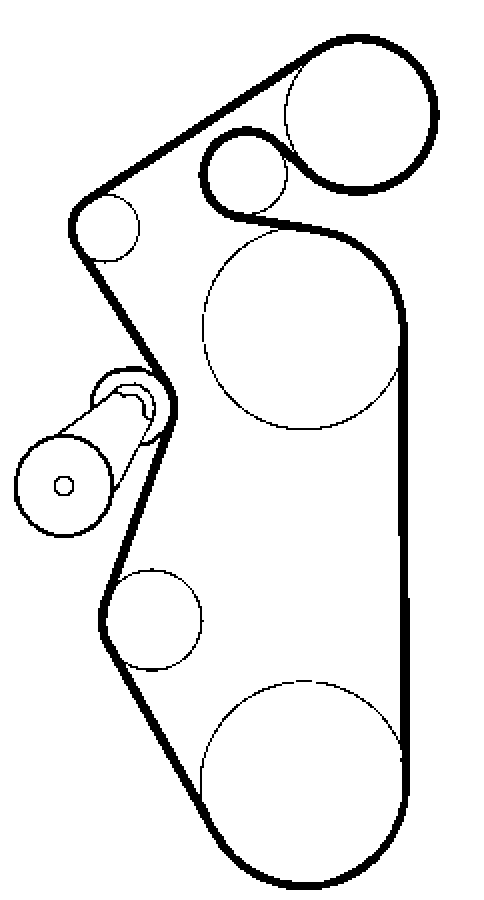

7610 Cab

RW55119

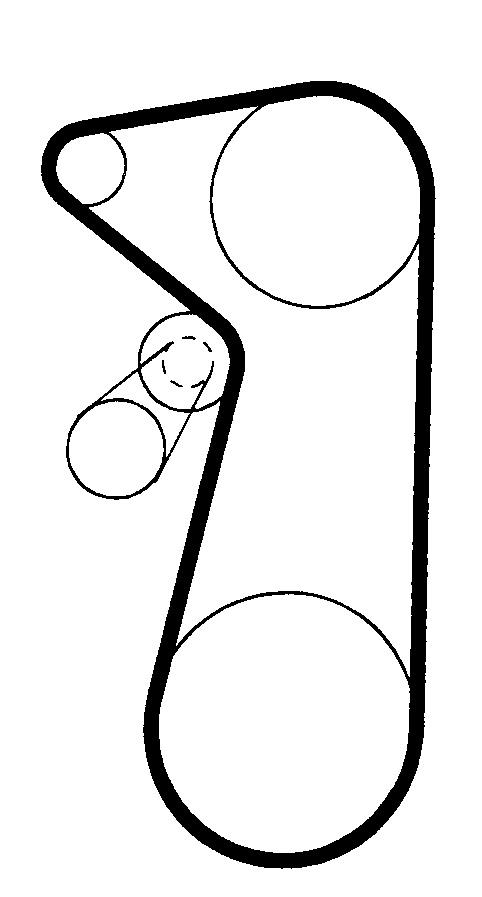

7710 and 7810 Open Station

RW55120

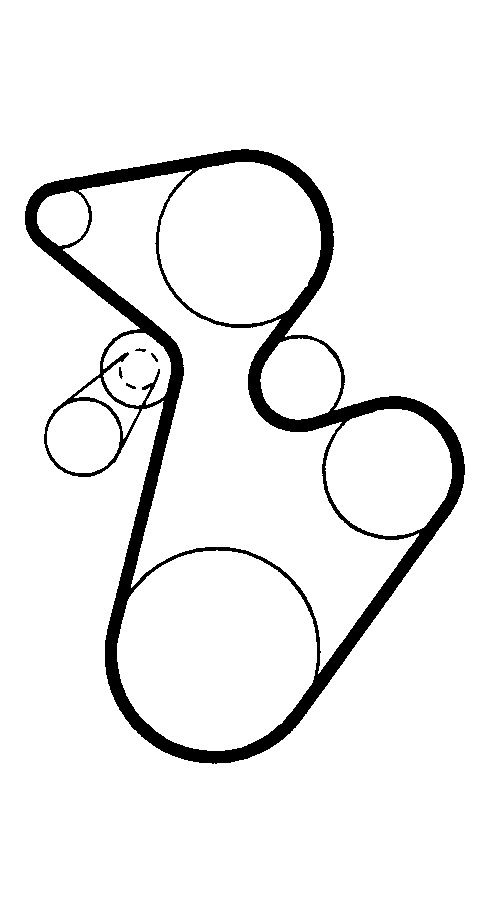

7710 and 7810 Cab

AG,RF30435,2509 -19-21DEC99-1/1
