Checking Engine Oil Level

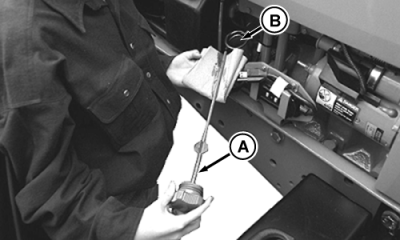

Remove dipstick (A) and check oil level with tractor on level ground. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick.

NOTE: Cross-hatch area is considered FULL.

If needed, add oil recommended in Fuels, Lubricants and Coolant Section in filler hole (B).

Do not operate engine with oil level below the "ADD" mark on dipstick.

NOTE: Tighten dipstick to check oil on 7710 and 7810 engines.

RW55827A

AG,RF30435,2517 -19-21DEC99-1/1
