Changing Transmission-Hydraulic Oil

Put the tractor on level ground and operate engine to warm the oil.

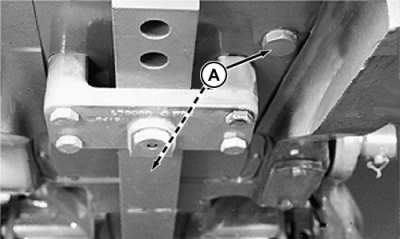

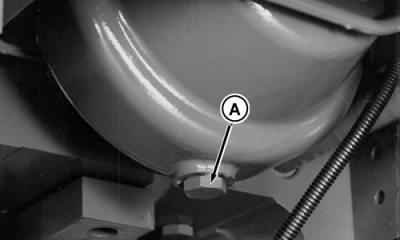

Stop engine and remove drain plugs (A) on bottom of differential case and MFWD clutch housing.

Reinstall plugs after oil has drained. (See Cleaning Hydraulic Oil Suction Screen.)

Refill with Transmission-Hydraulic oil specified in Fuels, Lubricants, and Coolant Section.

NOTE: The Powershift control unit must be recalibrated when changing oil from one viscosity to another. See your John Deere Dealer.

Specification

Powershift Transmission 1 -Capacity 102.3 L (27 gal)
PowrQuad Transmission 1 -Capacity 98.3 L (25.9 gal)
AutoQuad II Transmission 1 -Capacity 98.3 L (25.9 gal)
PowrQuad with Creeper Transmission 1 -Capacity 102.3 L (27 gal)

Operate engine several minutes. Check for leaks. Stop engine and recheck oil level after a minimum of five minutes. Add oil as necessary.

RW20384A
RW55745A

1 Capacities are average values and may vary between tractors or each oil change.

AG,RF30435,2520 -19-21DEC99-1/1
