Replacing Transmission Filter

Replace transmission filter as required or 750 hours.

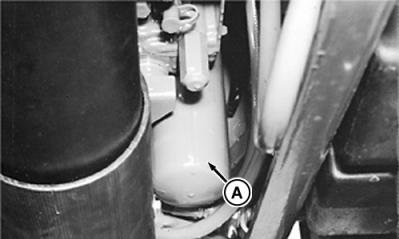

Remove filter (A).

Lubricate the new filter packing with hydraulic oil only. Install and hand tighten filter.

Check oil level and add as required.

IMPORTANT: Filter screen on Powershift transmission must be replaced when changing the transmission filter. See your John Deere Dealer.

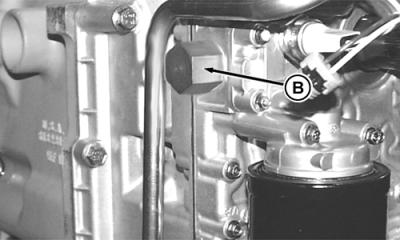

Powershift transmission filter screen is located behind large hex plug (B).

AG,RF30435,2521 -19-21DEC99-1/1
