Checking MFWD Axle Housing Oil Level

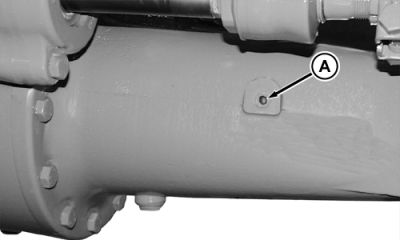

Put the tractor on level ground. Remove plug (A) and check axle housing oil level. Oil level should be just below plug hole.

NOTE: Use a pipe sealant when installing plug (A).

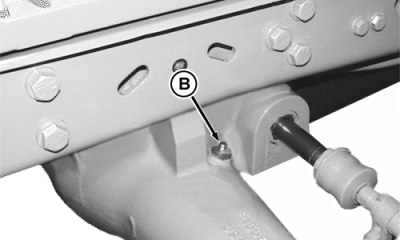

If oil level is low, remove plug (B) and add oil until level is correct. John Deere HY-GARD oil is recommended. (See Fuels, Lubricants, and Coolant Section.)

AG,RF30435,2526 -19-21DEC99-1/1
