Changing MFWD Axle Housing Oil

1. Put the tractor on level surface.

2. Remove axle housing drain plug (A) and (C). Replace plug after oil has drained.

3. Add John Deere HY-GARD ® oil as specified in Fuels, Lubricants, and Coolant Section), through fill hole (B) until oil is even with bottom of hole (D). Install the plugs.

Specification

Axle Housing -Capacity 14.4 L (15.2 qt)

NOTE: Use a pipe sealant when installing plug at (D).

4. After a few minutes of operation, recheck oil level. Add oil if necessary.

5. Tighten all plugs to 70 N·m (52 lb-ft).

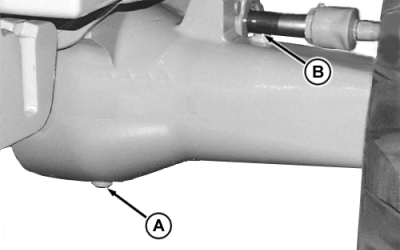

RW26480

MFWD Axle

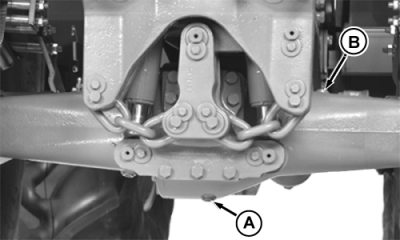

RW26481

MFWD Axle with Triple Link Suspension

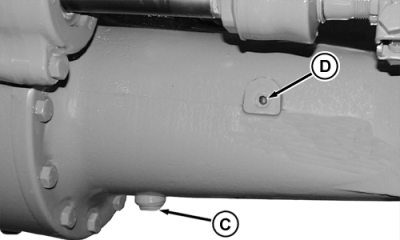

RW26482

HY-GARD is a trademark of Deere & Company

AG,RF30435,2527 -19-21DEC99-1/1
