Lubricating Rear Axle Bearings

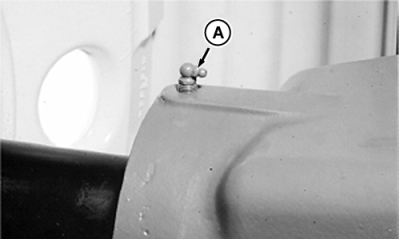

Apply grease to fittings (A) until grease appears at seals, or a maximum of 25 shots. Use John Deere High Temperature/Extreme Pressure/Non-Clay grease or equivalent.

RW22094A

AG,RF30435,2530 -19-21DEC99-1/1
