Lubricating Triple Link Suspension

NOTE: Lubricate every 250 hours under normal conditions.

Lubricate the suspended front axle at 10 hour intervals when operating in extremely wet or dusty conditions.

Use John Deere High-Temperature/Extreme Pressure/Non-Clay grease or other grease as specified in Fuels, Lubricants and Coolant Section. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C.

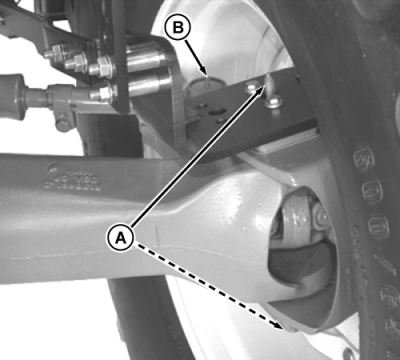

Kingpins -apply grease to fittings (A) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods -apply several shots of grease to fittings (B).

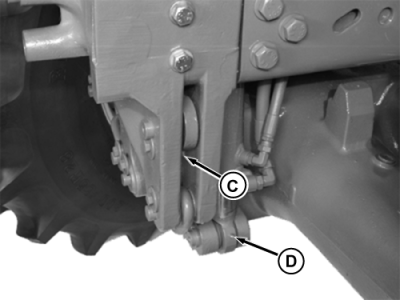

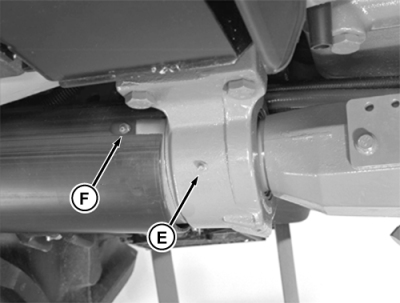

Apply grease to bearing fitting (C), each cylinder fitting (D), to bearing support (E), and to area between seal and bearing (F).

A-Kingpins
B-Tie Rod Ends
C-Bearing (Each End)
D-Cylinders (Each End)
E-Bearing Support
F-Seal Barrier
