Servicing Fuel Pre-filter

IMPORTANT: Arrow on pre-filter must point in the direction of fuel flow. Incorrect installation could cause transfer pump damage.

1. Remove pre-filter (A) from fuel lines.

2. Install new pre-filter.

3. Bleed fuel system.

IMPORTANT: Failure to replace clogged or damaged pre-filter could damage the transfer pump.

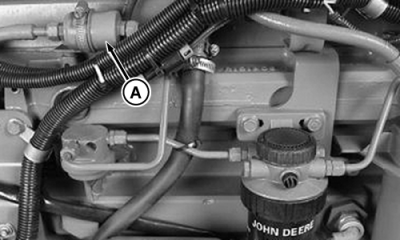

RW55850A

7610

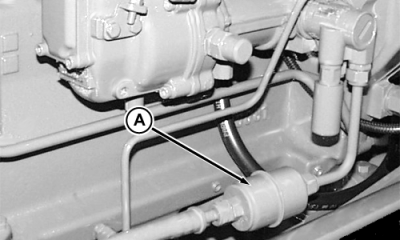

RW26825

7710 and 7810

AG,RF30435,2544 -19-17FEB00-1/1
