Replacing Fuel Filter-7610

Thoroughly clean exterior of filter and filter mounting area.

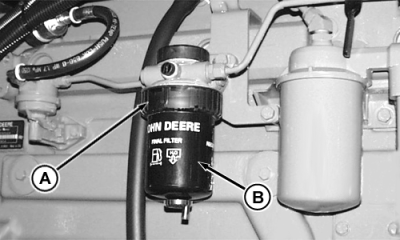

Unscrew filter retaining ring (A) to remove filter (B). Remove and discard old filter.

Align keys on fuel filter with slots in filter base. Install filter holding filter firmly against base.

Tighten the fuel filter retaining ring into lock position.

Bleed fuel system.

AG,RF30435,2545 -19-21FEB00-1/1
