Bleeding Fuel System-7610

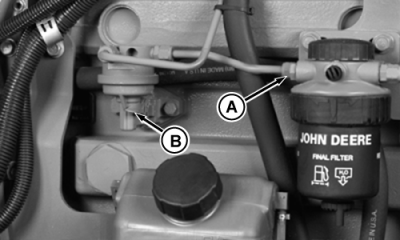

1. Turn key switch to ON position.

2. Loosen bleed plug (A).

3. Push hand primer (B) on fuel supply pump.

NOTE: If the primer does not pump fuel and no resistance is felt, turn the engine slightly with the starter to change the fuel pump cam position.

4. Push the hand primer until a smooth flow of fuel, free of bubbles, comes out of the filter bleed plug hole.

5. Tighten bleed plug and leave primer lever in the down position.

RW55915A

AG,RF30435,2546 -19-21FEB00-1/1
