Bleeding Fuel System-7710 and 7810

1. Turn key switch to ON position.

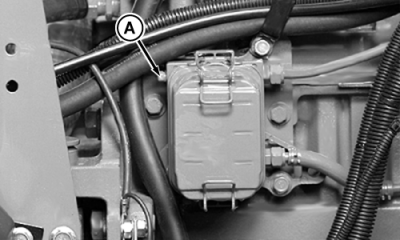

2. Loosen bleed plug (A).

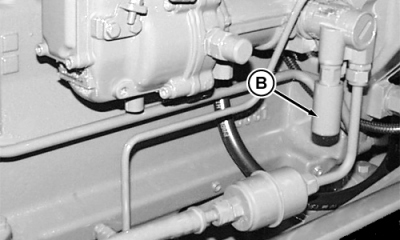

3. Unscrew hand primer (B).

4. Push the hand primer until a smooth flow of fuel, free of bubbles, comes out of the filter bleed plug hole.

5. Gently push the hand primer down and close the bleed plug. Tighten plug securely. DO NOT overtighten. Continue operating hand primer until slight pressure is felt.

IMPORTANT: Prevent internal thread damage by seating hand primer in barrel before tightening.

6. Lock hand primer in position.

RW55833A
RW26826

AG,RF30435,2549 -19-21FEB00-1/1
