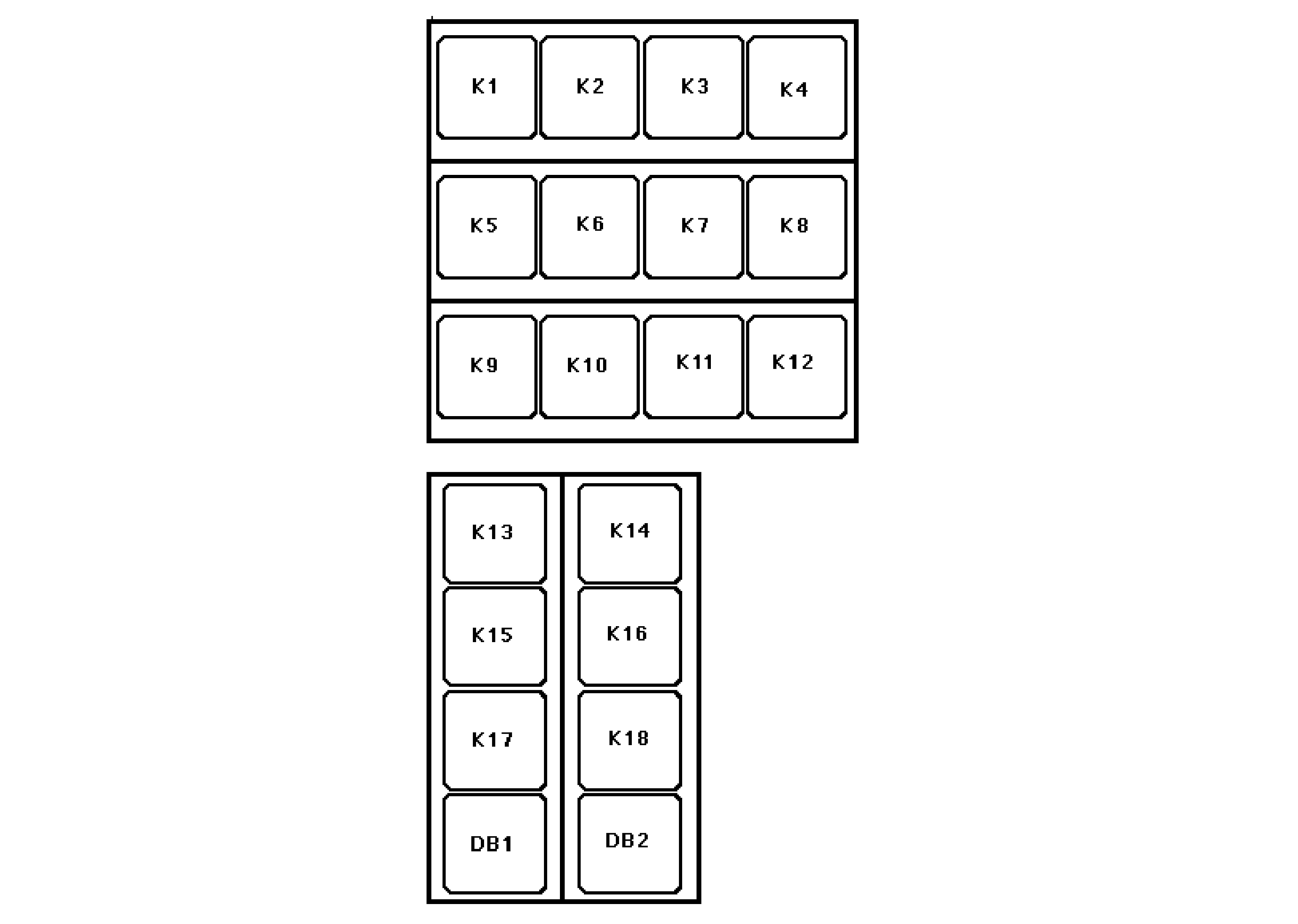

K1-Spare
K2-Rear Roof Floods
K3-Head Lights-High Beam
K4-Head Lights-Low Beam
K5-Front Roof Floods
K6-Rear Fender Floods, Front Wrap-around Lights
|
K7-Right Turn/Hazard Roof, Road Transport
K8-Left Turn/Hazard Roof, Road Transport
K9-Belt-line Floods
K10-Spare
K11-Spare
|
K12-7-Pin Socket Accessory
K13-Electronics (ELX) Relay-1
K14-Accessory-1
K15-Front/Rear Wiper
K16-Heat, Ventilation, Air Conditioning Blower Switch
|
K17-Not Used
K18-Not Used
DB1-Six Diodes
DB2-Six Diodes
|
