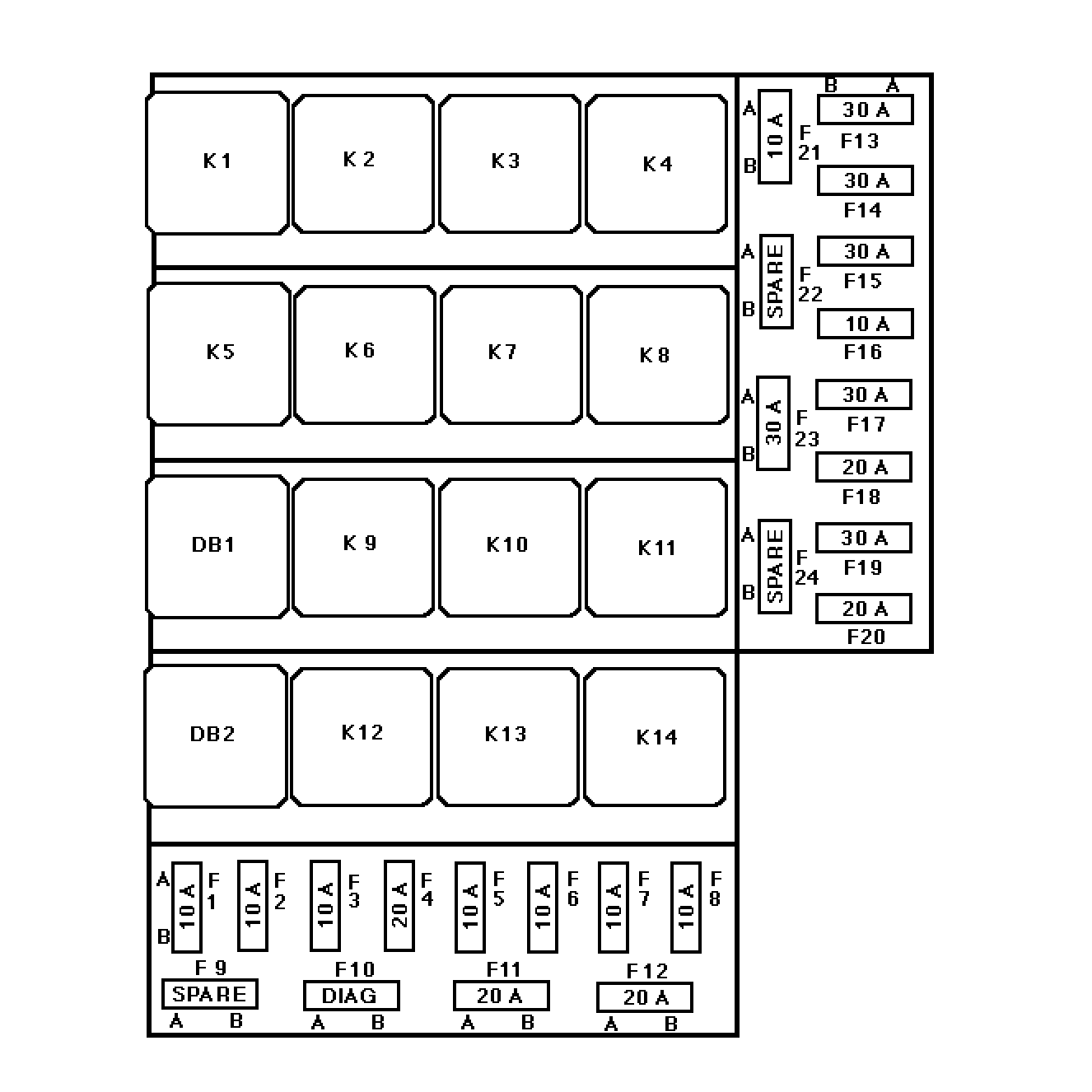

F1-CCU-Creeper Sensor, and Radar
F2-CCU-PTO, Brakes, MFWD and Differential Lock, HMS
F3-Tachometer Display Module
F4-CCU-Central Control
F5-HCU-Hitch Control
F6-Spare
F7-Spare
F8-Spare
F9-Spare
F10-Diagnostic Calibration
|
F11-Left Tail Lights
F12-Right Tail Lights
F13-Key Switch
F14-Lighter, Turn Signals and Indicators, and Horn
F15-Convenience Outlet
F16-Electronics Power
F17-High and Low Beam Head Lights, Hazard Indicator, and Tach Display Back Light
F18-Front Flood Lights
F19-Rear Flood Lights and Wrap-Around Lights
|
F20-Hazard Lights
F21-Accessory Relay and Seat Switch
F22-Spare
F23-7-Pin Socket Accessory
F24-Spare
K1-Head Lights
K2-High/Low Beam
K3-Front Floods
K4-Rear Floods
K5-Right Fender Turn/Hazard, Road Transport
K6-Left Fender Turn/Hazard, Road Transport
|
K7-7-Pin Socket Accessory
K8-Electronics (ELX) Relay
K9-Accessory Relay
K10-Powershift Latching Relay
K11-Powershift "Enable" Relay
K12-Powershift "Enable" Relay
K13-Blank
K14-Blank
DB1-Six Diodes
DB2-Six Diodes
|
