Replacing Front Lights

1. Remove side shields.

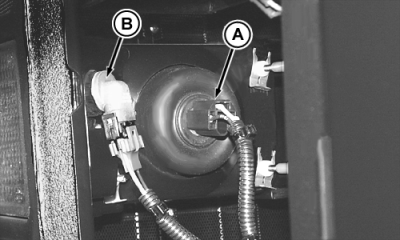

2. Remove connector (A). Remove dust boot, and unlatch retaining spring. Remove lamp and install new lamp. Latch retaining spring. Install dust boot and connector.

3. To replace side lamp (B), twist connector 1/4 turn and pull to remove. Replace element and install connector.

AG,RF30435,2557 -19-21DEC99-1/1
